DS6.471.3
The foundation for demanding conference tables
Sitting, standing and leaning: thanks to height-adjustable tables, employees can promote their health while they work. This applies not only to individual work tables, but also to large conference tables for multiple people. A reliable table system with powerful drive technology provides the foundation for a good height-adjustable conference table. OKIN's DS6.471.3 table system combines six lifting columns from the DD series with frame components and table legs for constructing medium-sized conference tables.
The table feet have a floor level adjustment mechanism and are exactly matched in size to the lifting column profiles. The variable-length table frame consists of a multi-part tubular steel frame with profiles attached to the sides. The system can be controlled using a variety of OKIN products.
The safe heart for the conference room

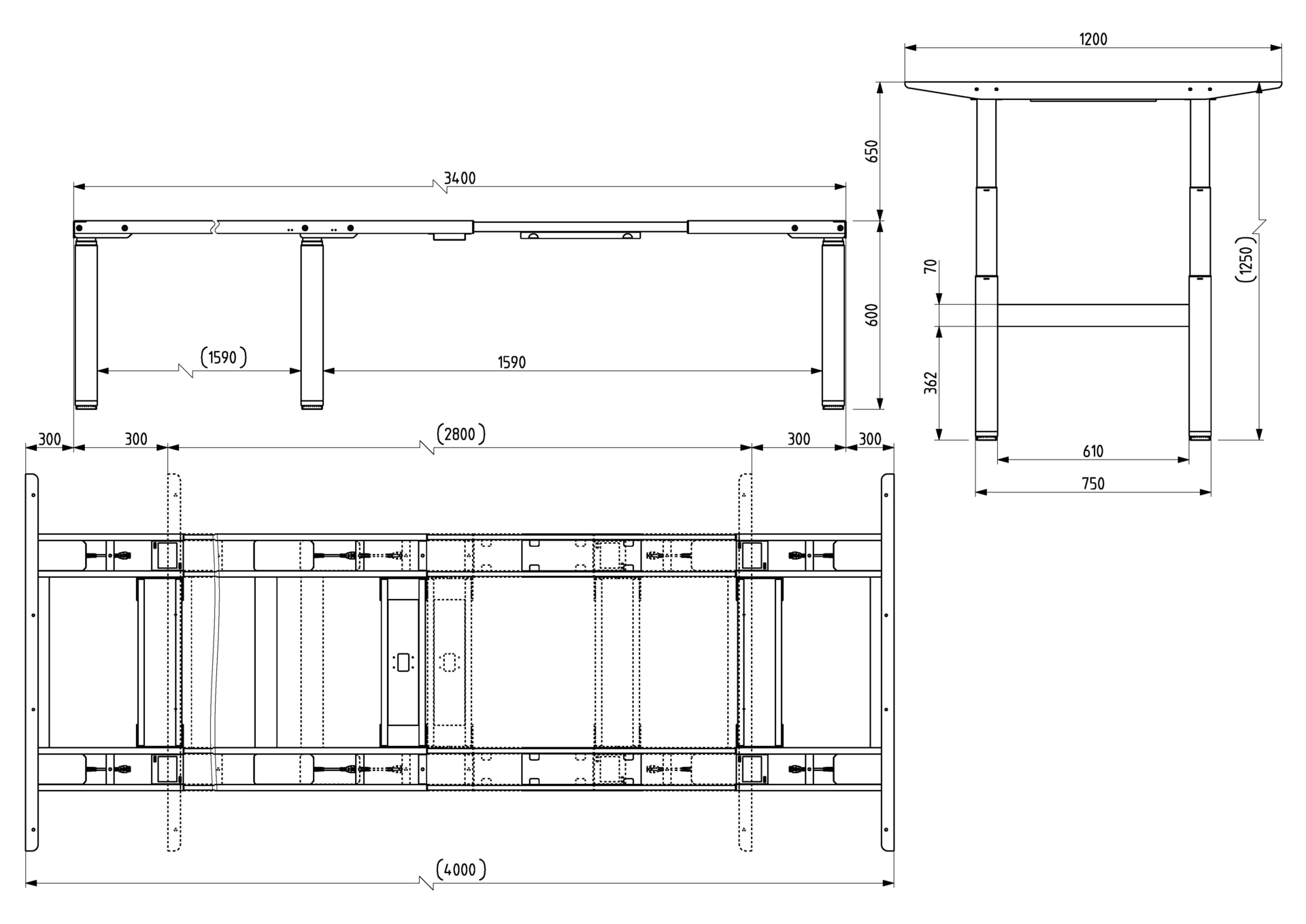

Safety and versatility play an important role when operating height-adjustable desks and conference tables. The table frames for the lifting columns of the DD series can reliably meet these requirements at all times. The length of the frame is smoothly adjustable for different-sized tabletops in a range between 2,800 and 4,000 mm. The powder coating of the frame also matches the colour of the lifting column system. The table frames are available in silver, white or black, depending on your requirements.
Customer benefits
Multi-part tubular steel frame with side profiles and variable frame length |
|
Stable table system with 6 lifting columns |
|
Powder coating corresponds to the colour of the lifting column |
Standard configurations
Technical specifications |
|
|---|---|
Adjustment load |
Max. 2x1500 N / 3x338 lbs pressure |
Adjustment speed* |
35 mm (1.38") / sec. |
Type of lifting column |
DD471.3 |
Height, min. |
600 mm / 23.62'' |
Height, max. |
1250 mm / 49.21'' |
Length, min. |
2800 mm / 110.27'' |
Length, max. |
4000 mm / 157.48'' |
Width of side profile |
1200 mm |
Ambient temperatures |
+10 °C – +40 °C |
Housing colour |
black RAL 9005 silver RAL 9006 white RAL 9016 |
*Depending on the drive configuration and the control components being used
