DS4.471.3
The reliable system for adjusting height
The desk system with a powerful drive solution: The 2x2 motors in the DS4.471.3 generate a lifting force of 1,200 N each at an adjustment speed of 35 mm/s. This product consists of two two-legged tables with lifting columns from the DD series, frame components and the matching table feet. The powder coating of the frame components matches the colour of the lifting column system: black, white or silver as desired. OKIN also provides the optimal control unit for the control functionality.
The table system for demanding tasks
The bench system uses the proven OKIN table frames from the DS2 series, which ensure outstanding safety and versatility. OKIN subjects these table frames, which are certified in accordance with EN 527, to stringent load tests. This system not only delivers performance and safety, it is also very versatile. The table frames consist of a multi-part tubular steel frame with lateral profiles. It can be smoothly adjusted for tabletops of different sizes ranging from 1,100 to 1,800 mm.
Customer benefits
Multi-part tubular steel frame with side profiles and variable frame length |
|
Space-saving bench system with 2x2 lifting columns |
|
Complies with international standards, e.g. DIN EN 527 |
|
Powder coating corresponds to the colour of the lifting column |

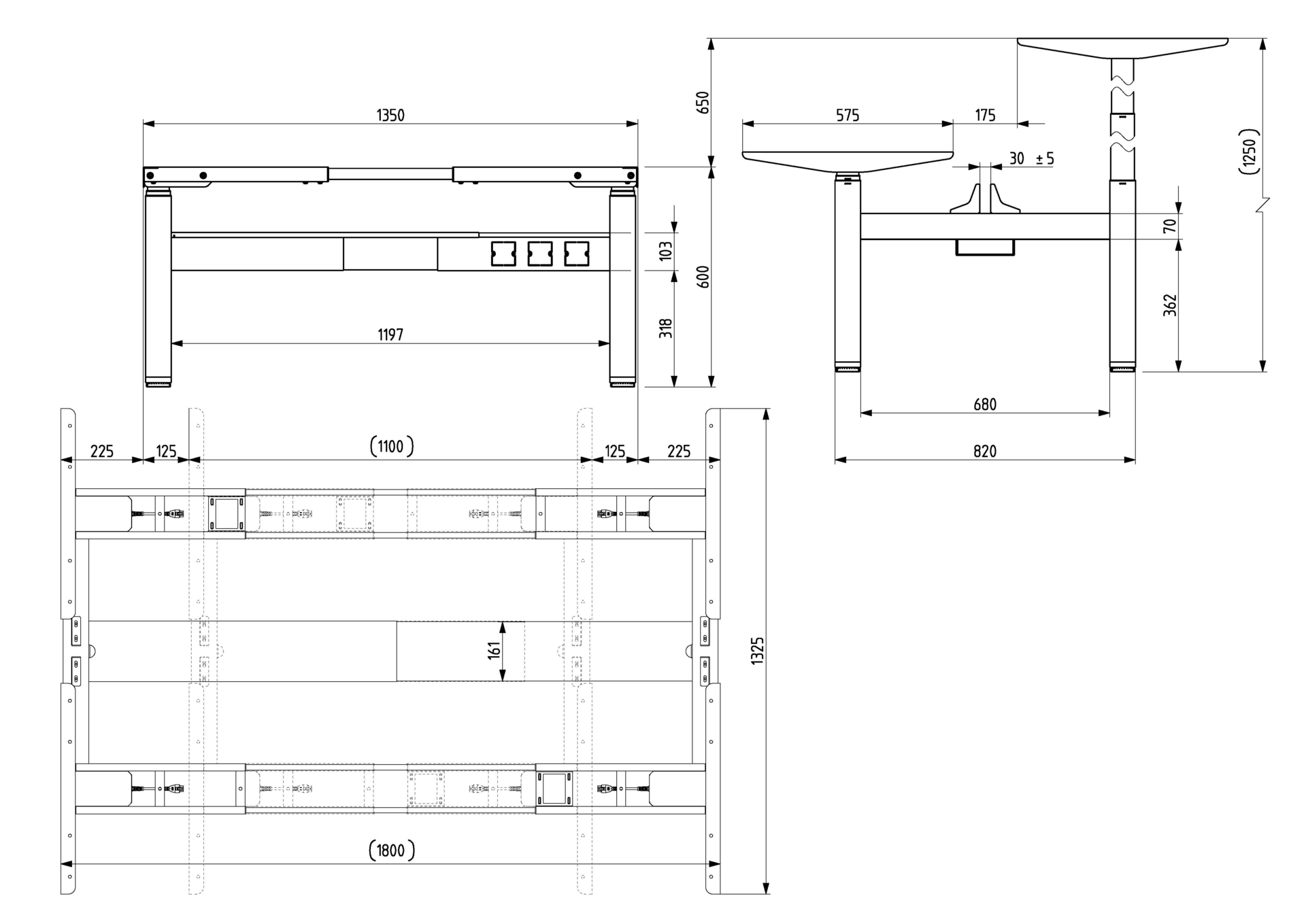

Standard configurations
Technical specifications |
|
|---|---|
Adjustment load |
Max. 1200 N / 270 lbs pressure (for each table) |
Adjustment speed* |
35 mm (1.38") / sec. |
Type of lifting column |
DD471.3 |
Height, min. |
600 mm / 23.62'' |
Height, max. |
1250 mm / 49.21'' |
Length, min. |
1100 mm / 43.31'' |
Length, max. |
1800 mm / 70.87'' |
Width of foot |
682 mm |
Width of side profile |
575 mm |
Ambient temperatures |
+10 °C – +40 °C |
Housing colour |
black RAL 9005 silver RAL 9006 white RAL 9016 |
*Depending on the drive configuration and the control components being used
