DS3.451.3
The stable foundation for demanding desks
The components of the DS3.451.3 are suitable for constructing table systems with three lifting columns from the DD series. The systems can be operated using various control units.
Versatile, robust and safe
The three-leg table system uses the proven OKIN table frames from the DS2 series; this ensures outstanding safety and versatility. Strict internal load tests and certification according to EN 527 have confirmed the high strength and durability of OKIN's table frames and systems. The length of legs A and B can be smoothly adjusted for table tops of different sizes in a range from 1,100 to 1,800 mm (A) or 1,280 to 1,800 mm (B). In addition to functionality, OKIN places great importance on appearance. The frame's powder coating is available to match the colour of the lifting columns. Customers can choose between black, white or silver.
Customer benefits
Multi-part tubular steel frame with side profiles |
|
Frame length is variably adjustable on both sides |
|
Complies with international standards, e.g. DIN EN 527 |
|
Powder coating corresponds to the colour of the lifting column |

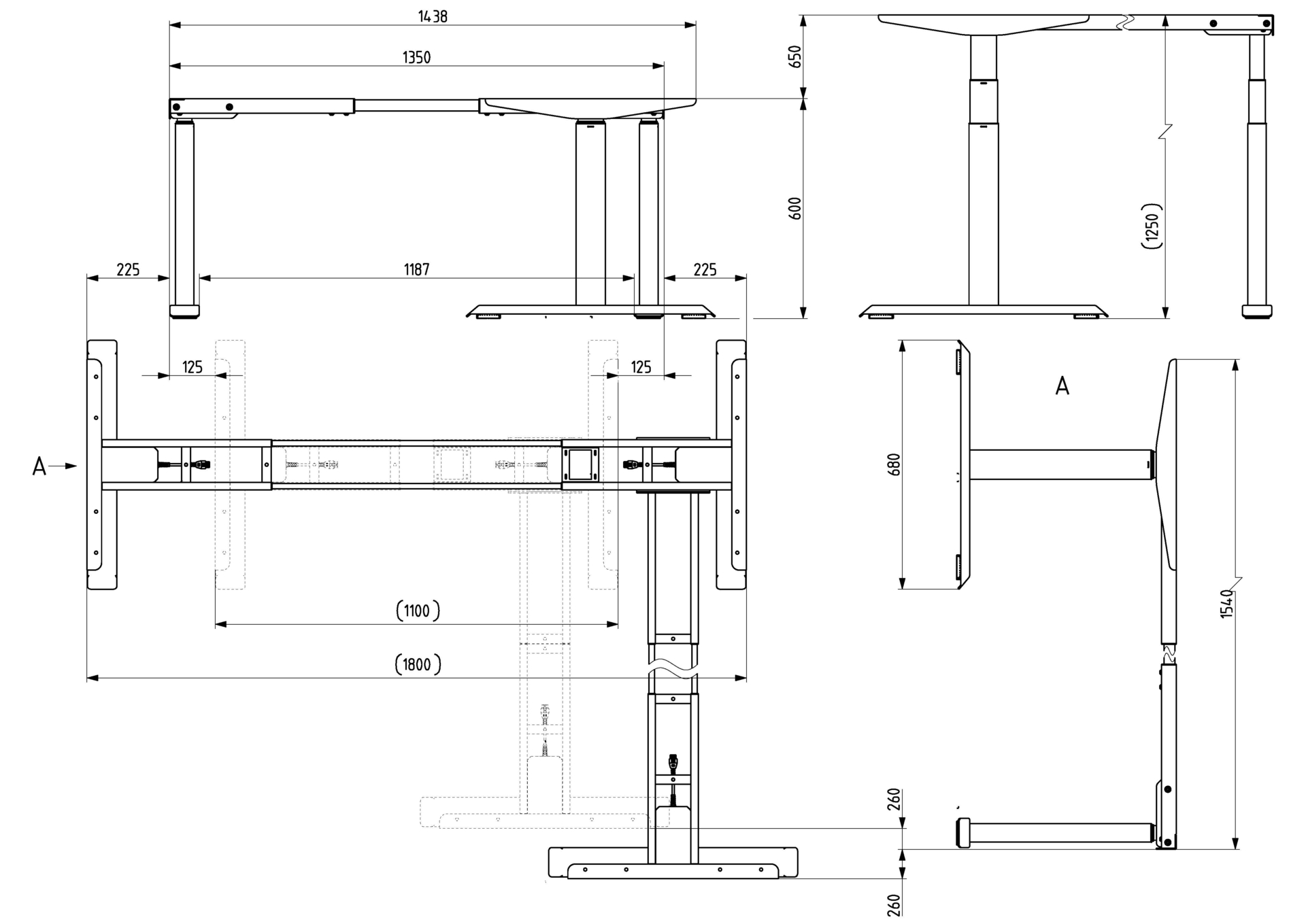

Standard configurations
Technical specifications |
|
|---|---|
Adjustment load |
Max. 1500 N / 338 lbs pressure |
Adjustment speed* |
35 mm (1.38") / sec. |
Type of lifting column |
DD451.3 / DD471.3 |
Height, min. |
600 mm / 23.62'' |
Height, max. |
1250 mm / 49.21'' |
Length, min. |
A: 1100 mm / 43.31"; B: 1280 mm / 50.39'' |
Length, max. |
A: 1800 mm / 70.87"; B: 1800 mm / 70.87'' |
Width of foot |
680 mm |
Width of side profile |
575 mm |
Ambient temperatures |
+10 °C – +40 °C |
Housing colour |
black RAL 9005 silver RAL 9006 white RAL 9016 |
*Depending on the drive configuration and the control components being used
