DS2.451.2
Two-leg desk system for improved ergonomics
The demands placed on modern office spaces are growing and ergonomic drive technology has become a key aspect for planning these spaces. OKIN's DS2.451.2 provides customers with an optimal foundation for constructing reliable, height-adjustable work tables. This high-quality desk system includes two lifting columns from the DD series, frame components and the table feet together in a set. The lifting columns can be optionally operated using one of OKIN's control units. The variable-length table frame consists of a multi-part tubular steel frame with profiles attached to the sides. The DS2.451.2 also looks great. Its powder coating can be chosen to match the colour of the lifting columns: black, white or silver.
Versatile technology for a versatile workplace
The table frames for the lifting columns of the DD series are not only safe but also very versatile. The length of the frame is smoothly adjustable for different tabletops in a range between 1,100 and 1,800 mm. The OKIN table frames are also subjected to demanding internal load tests. These products are certified according to EN 527, optionally also DIN FB 147 – so that the strength and stability of the table systems are guaranteed.
Customer benefits
Multi-part tubular steel frame with side profiles (frame length is variable) |
|
Table systems with 2 lifting columns (optional 2x2 bench systems) |
|
Complies with international standards, e.g. DIN EN 527 (optionally also DIN FB 147) |
|
Powder coating corresponds to the colour of the lifting column |

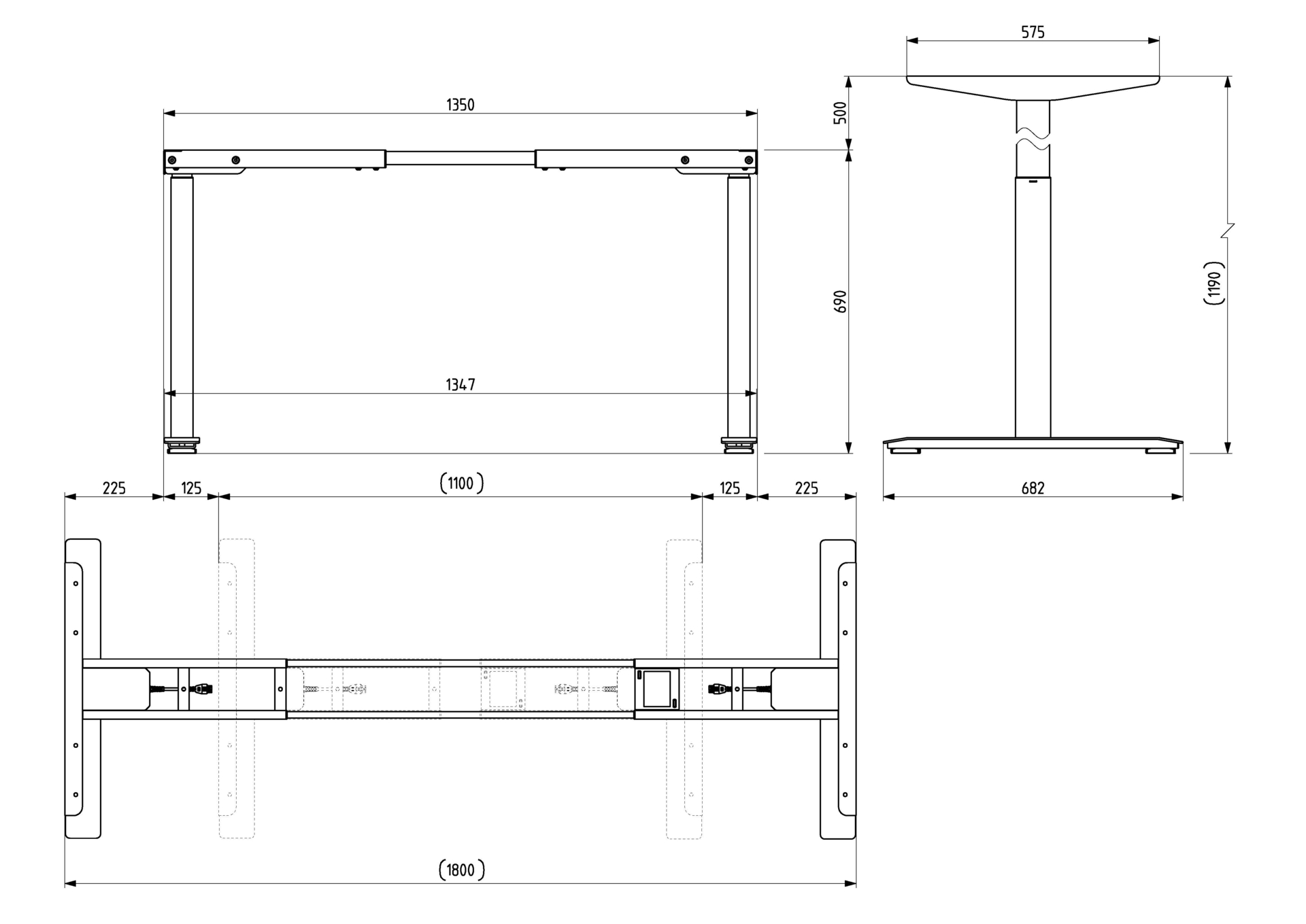

Standard configurations
Technical specifications |
|
|---|---|
Adjustment load |
Max. 1200 N / 270 lbs pressure |
Adjustment speed* |
35 mm (1.38") / sec. |
Type of lifting column |
DD451.2 |
Height, min. |
690 mm / 27.17'' |
Height, max. |
1190 mm / 46.85'' |
Length, min. |
1100 mm / 43.31'' |
Length, max. |
1800 mm / 70.87'' |
Width of foot |
682 mm |
Width of side profile |
575 mm |
Ambient temperatures |
+10 °C – +40 °C |
Housing colour |
black RAL 9005 silver RAL 9006 white RAL 9016 |
*Depending on the drive configuration and the control components being used
